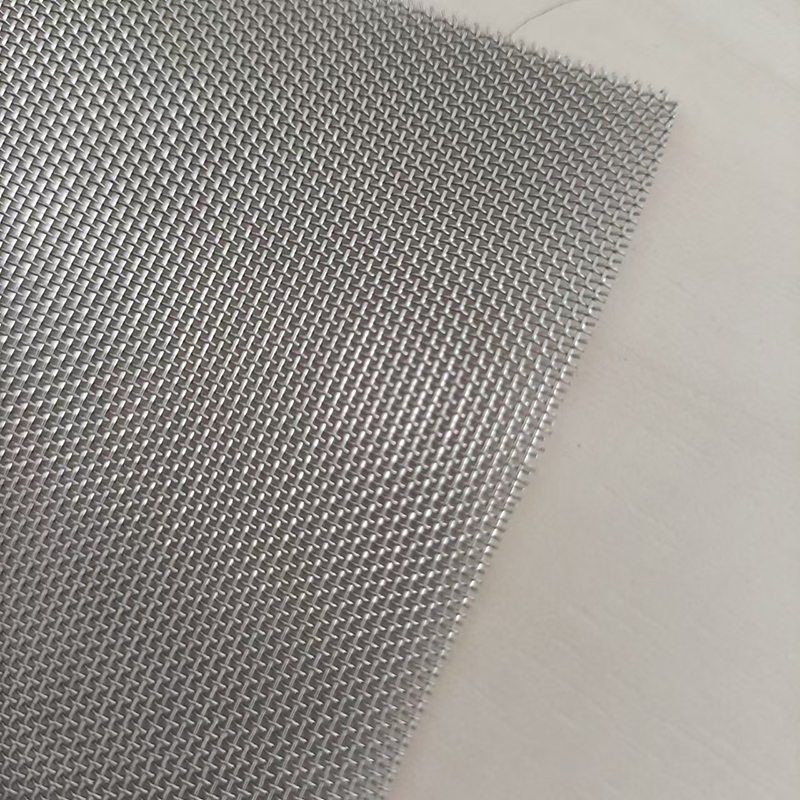

Stainless Steel Braided Mesh
1. The stainless steel wire mesh screen we produce is processed by special process, with high strength, and can adapt to more stringent working environment.
2. The stainless steel wire mesh screen we produce uses imported raw materials, and it still maintains excellent stability and durability even in harsh acid and alkali environments.
3. The mesh size of stainless steel wire mesh screen is precisely controlled to meet high-precision requirements and is widely used in various industrial fields.
-
Product Category
- - Stainless Steel Mesh
- - Polyester Mesh
- - PPS Mesh
- - Aramid Mesh
Product introduction of SS 316L braided mesh roll:
The SS 316L braided mesh roll we produce is made of high-quality stainless steel wire imported from Japan. The mesh design is very fine and can be customized according to customer needs. The mesh of stainless steel 304 wire mesh-metal mesh screen is uniform and precise, and is widely used in occasions requiring high-precision screening, such as food processing, pharmaceutical filtration, etc.
Product advantages of SS 316L Braided Mesh Roll:
By using 316L stainless steel wire imported from Japan, our stainless steel 304 wire mesh-metal mesh screen has high tensile strength and wear resistance. In the process of screening and filtering, it can effectively reduce wear and loss, and maintain the stability of the stainless steel 304 wire mesh-metal mesh screen mesh shape for a long time. This high-strength material makes our stainless steel 304 wire mesh-metal mesh screen particularly suitable for mining, metallurgy and other high-load operations, reducing replacement frequency and maintenance costs.
Size Specifications of SS 316L braided mesh roll:
The SS 316L braided mesh roll we produce is made of high-quality materials such as 304 and 316 stainless steel, which can effectively resist various chemical corrosion. The wire diameter of SS 316L braided mesh roll ranges from 0.02mm to 1.8mm, and common meshes include 20 mesh and 40 mesh. We also support customized mesh stainless steel woven wire mesh screen size and mesh size, which can be tailored according to your actual needs to ensure the best use effect.
Product application of mesh stainless steel woven wire mesh screen:
The construction industry can significantly improve the safety and aesthetics of buildings by using our mesh stainless steel woven wire mesh screen. Stainless steel wire mesh screen is not only used for exterior wall insulation, sound insulation and decoration, but also plays an important role as a building safety net. Stainless steel wire mesh screen has high strength and good durability, providing strong support for construction projects. The electronics industry also benefits from it. The application of mesh stainless steel woven wire mesh screen in high-precision printing ensures the quality of the product, especially the protection of precision components and high-end equipment.
Specification List | |||||
| Mesh/lnch (mesh) | Wire Diameter(mm) | APerture | Mesh/lnch (mesh) | Wire Diameter(mm) | APerture |
2 | 1.8 | 10.9 | 60 | 0.15 | 0.273 |
3 | 1.6 | 6.866 | 70 | 0.14 | 0.233 |
4 | 1.2 | 5.15 | 80 | 0.12 | 0.198 |
5 | 0.91 | 4.17 | 90 | 0.11 | 0.172 |
6 | 0.8 | 3.433 | 100 | 0.1 | 0.154 |
8 | 0.6 | 2.575 | 120 | 0.08 | 0.132 |
10 | 0.55 | 1.99 | 140 | 0.07 | 0.111 |
12 | 0.5 | 1.616 | 150 | 0.065 | 0.104 |
14 | 0.45 | 1.362 | 160 | 0.065 | 0.094 |
16 | 0.4 | 1.188 | 180 | 0.053 | 0.088 |
18 | 0.35 | 1.06 | 200 | 0.053 | 0.074 |
20 | 0.3 | 0.97 | 250 | 0.04 | 0.061 |
26 | 0.28 | 0.696 | 300 | 0.035 | 0.049 |
30 | 0.25 | 0.596 | 325 | 0.03 | 0.048 |
40 | 0.21 | 0.425 | 350 | 0.03 | 0.042 |
50 | 0.19 | 0.318 | 500 | 0.025 | 0.0385 |
Customer comments:
Our equipment has extremely high precision requirements for stainless steel 304 wire mesh-metal mesh screen, and the error range must be controlled at the micron level, otherwise it will affect production efficiency. The SS 316L braided mesh roll sizes purchased from other companies in the past often did not meet the standards, resulting in gaps or waste of materials during installation. However, the SS 316L braided mesh roll produced by Shuguang Network has very good size error control for each batch, and the installation process is very smooth, without additional adjustment or cutting, which greatly improves production efficiency. In addition, the surface treatment process is excellent, without burrs or scratches, allowing our installers to complete the work more smoothly.
Service guarantee:
We have an experienced technical team ready to provide professional technical support to customers at any time. Whether it is stainless steel wire mesh screen installation, usage methods, or special application requirements, our technical experts can provide detailed answers and guidance. Customers can contact us by phone, email or online customer service, and we promise to respond within 24 hours to ensure that your problem is solved in a timely manner.
About us:
Shuguang Networks not only strictly controls quality during the production process, but also pays more attention to the sustainable development of products. Our independently developed new filter screens are widely used in power, petroleum, chemical and other fields with special high temperature resistant materials, providing customers with highly reliable production support, and have been widely recognized in the international market with their excellent performance advantages.
